1/2 inch (12.7mm) circle

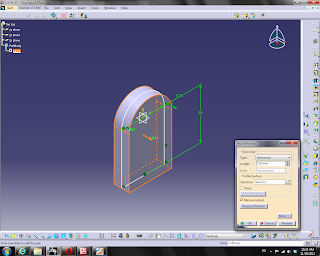

Pad
Material
Save and put into assembly
Top eye shouldn't be too bad, based on my reference pictures, it's basically the same as the lower eye
Pad
Little circular pad on the bottom
Fillet
I'm going to "cheat" and just copy a sketch from the damper body to save some time
Groove
Switch to generative shape design workbench, unhide the sketch from the groove and make symmetrical
Pocket to hold the spherical plain bearing 1"=25.4mm
Chamfer .5mm 45 degrees Fillet .5mm
It seems that there are a wide variety of top eyes for this damper, so I'm going to deviate heavily from the technical drawings again to represent what I most consistantly see in my reference photos
Changed the radius of the fillet to 6mm
Shorten it up a bit
Make a sketch for a shaft
Shaft and fillet
Apply material
I'm also going to put a hole in the bottom to help line it up with the piston rod
Save it and put it into the assembly
Add a bearing to the assembly
